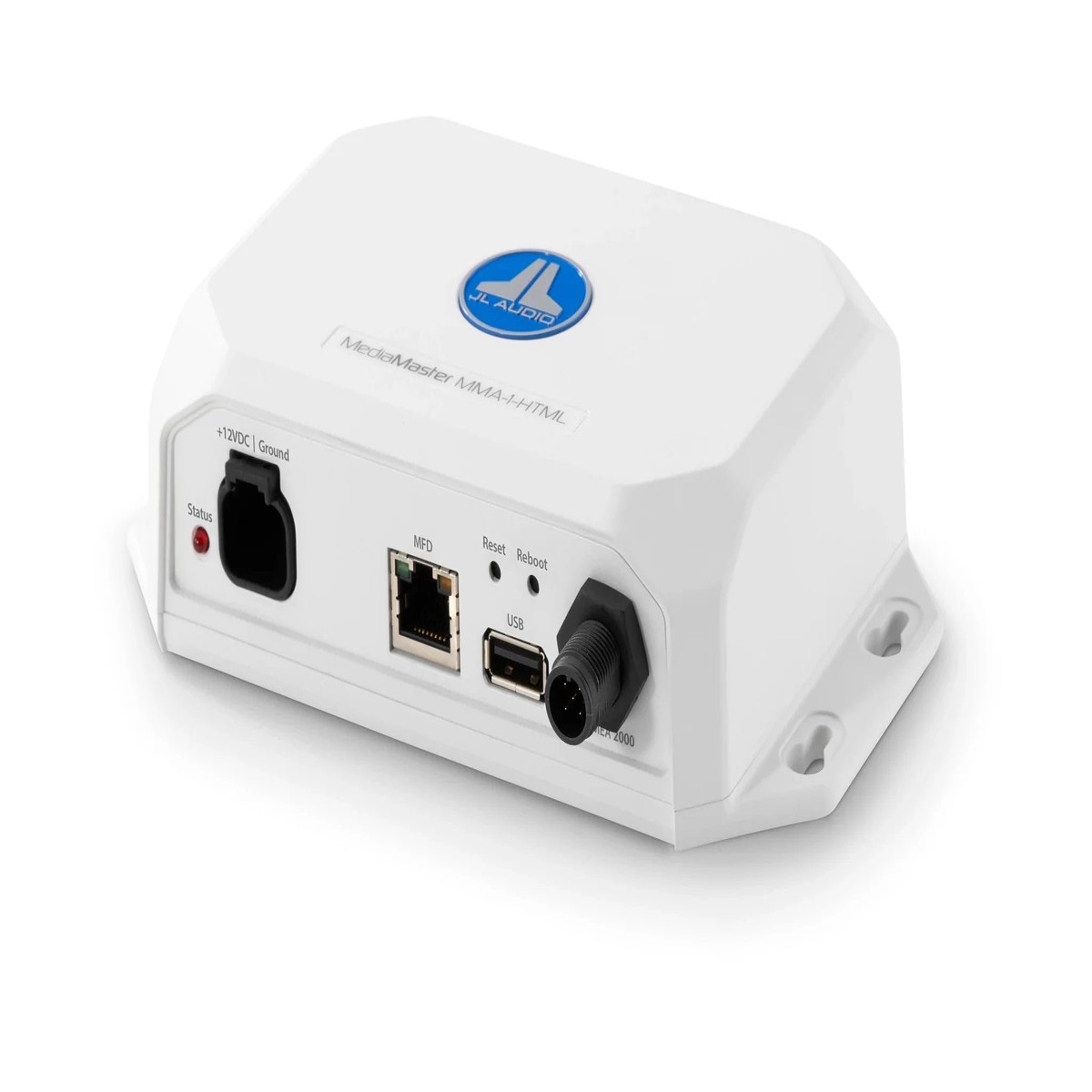

JL Audio MFD Data Interface for MediaMaster

99956

Model: MMA-1-HTML

NMEA 2000(R) Network, MFD Data Interface for MediaMaster(R) MM105 & MM105-HR

The MMA-1-HTML is a NMEA 2000(R) certified data interface engineered to generate MediaMaster(R) themed UI navigation and controls directly onto your vessel’s compatible MFD (Multi-Function Display). Exclusively designed for use with compatible MediaMaster(R) source units, the MMA-1-HTML allows you to pilot your boat and control your MediaMaster(R) seamlessly, via your helm’s MFD display.

Outfitted with a NMEA 2000(R) Micro-C connector (LEN 1), the MMA-1-HTML interfaces with a vessel’s NMEA 2000(R) network using applicable NMEA 2000(R) cables and connectors (not included). The MMA-1-HTML automatically recognizes the host MediaMaster(R) source unit and will then project its familiar screen info and navigation controls onto your MFD’s display, resulting in a true MediaMaster(R) user experience.

Compatible source unit models: MM105, MM105-HR, MM55, MM55-HR

Note: Functionality of the MMA-1-HTML is derived from the host source unit and connected MFD. The MMA-1-HTML requires connection to a NMEA 2000(R) network or use of a MMC-PN2K powered network cable (sold separately) to simulate an isolated, stand-alone NMEA 2000(R) network.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.

Brand: JL Audio

UPC: 699440999564

Model Number: 010-03135-00

Weight: 1.52
